| Highlight: | small lcd module,tft lcd display module |
||
|---|---|---|---|

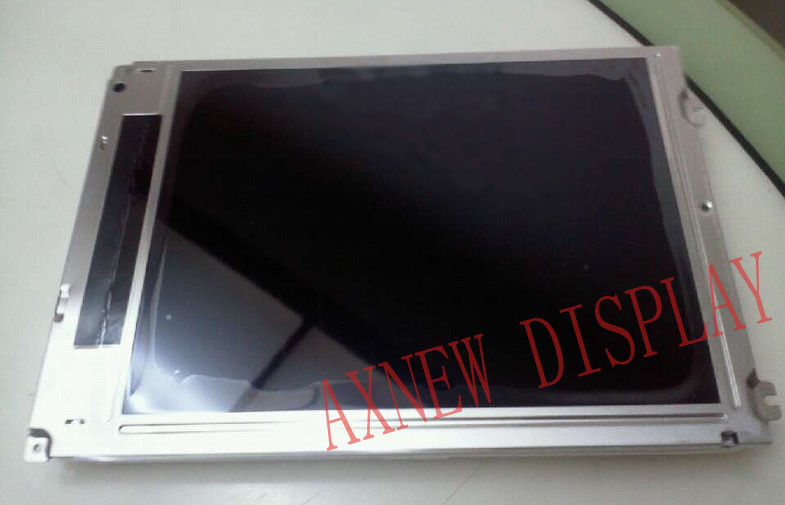

350nits high brightness of 10.4 inch 640x480 high resolution LCD is the standard specs
The LCDs are new and original package, usually for professional industry , used for Automatic equipments, Advertising , vending embedded system,Kiosks application etc.
Quick Details:
Model: LQ104V1DG51
Screen Size:10.4’’
Screen format: 4:3
Display Resolution(pixel):640x480
Contrast Ratio:500:1
Brightness:350cd/m^2
Storage temperature : -10℃~65℃
Product status: Stock
Features and Advantages
1. New and A grade perfect panels with LED backlight
2.10.4 inch high resolution open Kits are easily for installing in the Panel pcs, outdoor application control , digital player ,campus and industrial terminals etc
Specifications
|
Display |
10.4 inch industrial LCD screen |
|
Active Area |
211.2(H)×158.4(V) |
|
Backlight System |
CCFL |
|
Brightness |
350nits |
|
Contrast Ratio |
600:1 |
|
Charateristics |
This high-contrast VGA module features brightness and contrast ratings of 300 nits and 600:1, respectively. The module also incorporates color filters optimized for excellent color performance, and anti-glare and 3H hard coatings. |
|
Display Mode |
Normally White |
|
Interface |
6-bit (262,144 colors) |
|
operating Temperature |
-10℃~65℃ |
|
Outline dimensions |
246.5(W)×179.4(H)×14.2(D) |
|
Resolution |
640x480 |
|
Respons time |
35ms |
|
RoHS |
YES |
