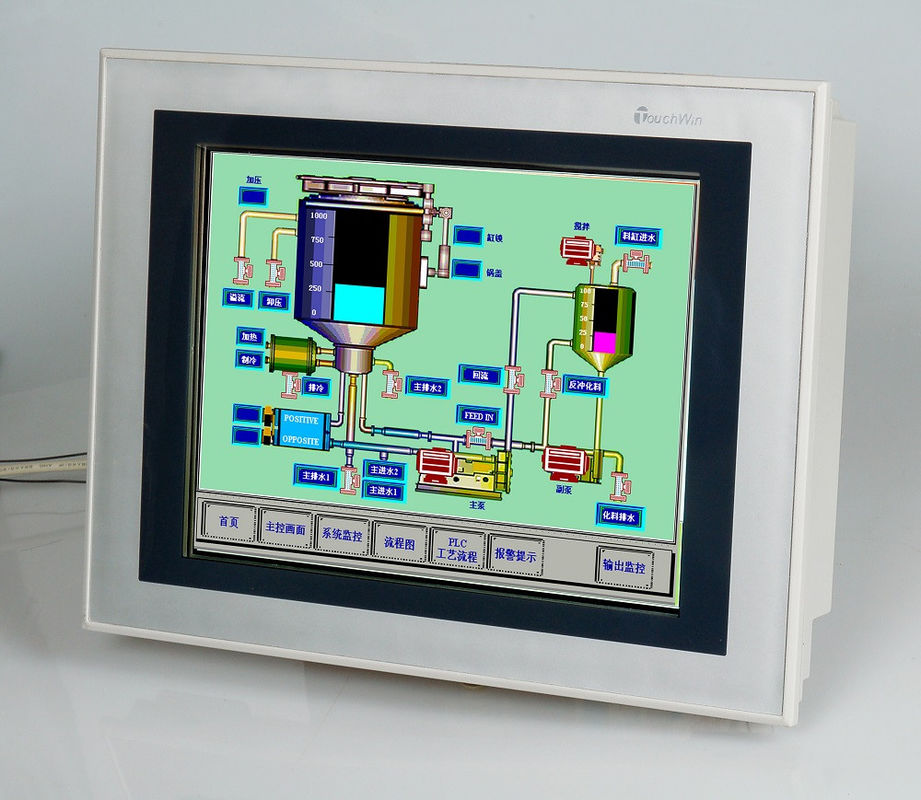

IP65 24V TFT LCD Human Machine System USB Port Connect U-disk
Quick Detail:
8 inch LCD,
power supply DC24V,
TG series touch screen HMI (human machine interface),
160000 colors screen display
can communicate with most brand of PLC models
2 USB port for programming and data transferring
Description:
High speed for download, start and run
C programming
BMP, JPG picture displaying
3D gallery can make the screen more vividly
Data display mode: time trend map, XY trend map, history trend map…
Self-defined animation track
Export and import the recipe data, improve the efficiency
ARM9 400MHz CPU, 128MB ROM, 128MB RAM
8 inch LCD, 16 million colors TFT LCD, LED backlight, resolution 800*600
2 COM ports, support RS232/RS485/RS422, 2 ports can communicate independently
Built-in real time clock
2 USB port for programming and data transferring
Specifications:
|
Item |
TG865-UT |
|
|
Electric |
Input voltage |
DC22-DC26V |
|
Current consumption |
190mA |
|
|
Momentary power off allowance |
Less than 10ms |
|
|
Withstand voltage |
AC1000V-10mA 1 minute (signal and time) |
|
|
Insulated impedance |
DC500V- about 10MΩ (signal and time) |
|
|
Port |
COM1 |
RS232/RS485 |
|
COM2 |
RS232/RS422/RS485 |
|
|
USB1 |
USB-A for data transferring |
|
|
USB2 |
USB-B for download program |
|
|
Ambient |
Operate temperature |
0－50℃ |
|
Storage temperature |
-20-60℃ |
|
|
Humidity |
10-90% (no condensation) |
|
|
Withstand vibration |
10-25HZ (X, Y, Z each direction 30 minutes 2G) |
|
|
Noise immunity |
Voltage noise: 1500Vp-p, pulse 1Ms, 1 minute |
|
|
Surrounding air |
No corrosive gas |
|
|
Protection level |
IP65 |
|
|
Screen |
Type |
16 million colors |
|
Screen size |
8 inch |
|
|
Using life |
More than 50000 hours, 24 hours running when surrounding temperature is 25 ℃ |
|
|
Resolution |
800*600 |
|
|
Contrast |
cannot adjust |
|
|
Language |
English, Spanish, Arabic and so on |
|
|
Character |
Any size and font |
|
|
Touch panel |
4-wire resistance mode |
|
|
Memory |
Screen |
128MB |
|
Construction |
Cooling method |
Natural air cooling |
|
Dimension |
224.4*170.8*45.5 |
|
|
Mounting dimension |
211.4*157.8 |
|
Applications:
TG series HMI can communicate with most brand of PLC, such as Siemens, Mitsubishi, Delta, Omron, AB and so on. It also can communicate with frequency inverter and other devices.
