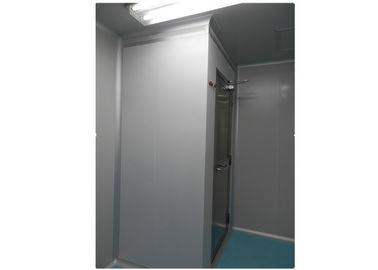

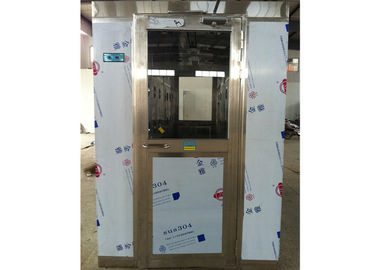

Auto Far Infrared Sensor Stainless Steel Air Shower Room For Seafood Workshop

Auto Far Infrared Sensor Stainless Steel Air Shower Room For Seafood Workshop





Quickly detail:



External Size: 2000x2000x2180mm

Internal size : 1500x1930x1910mm

Four persons with three side blowing

Disposable prefilter
SS air nozzles
Energy Efficient
Microprocessor controller
High velocity shower jets
Emergency stop buttons





 Introduce:



  As the filtration equipment through the action of high strength air flow, the double person air shower room is often used in conjunction with clean room.It can remove the impurity such as dust on the working staff before they go into the clean room. Each side of our product has six nozzles with a wide distribution range. With the mouth diameter of 30mm, the nozzle can spray out the air quickly
and the air shower area can be up to 1500×1900×1910mm. The air shower time can be adjusted in the range of 0 to 99s. Thus, the air shower effect can be assured to be the best level, which guarantees the cleanliness of the clean room completely.



keling  is an experienced stainless steel air shower room manufacturer in China.We also supply double person air shower room, stainless steel clean room pass box, double door clean cabinet, air curtain, and much more.





Specification :





Parameter :



KEL-AS2000P-2 Series
Model		KEL-AS2000P-2
External size(mm) (WXDXH)		2000x2000x2180
Work zone (mm)(WXDXH)		1500x1930x1910
Persons per cycle		4 -8person
Air shower Duration		Factory set at 12 second (adjustable)
Material		Steel with white color epoxy power-coated or Stainless steel
Fan consumption		0.75KWX4sets
Air flow of fan(m3/h)		1300m3/h
Fan run (r/min)		2800r/min
Nozzle in stain less steel		40pcs
Wind speed(m/s)		> 22-27m/s
Noise level(dB)		<62dB
LED Fluorescent Lamp		20wx2
HEPA Filter	Size(mm)	630X630X69mm
	Efficiency	99.99%@0.3um
	Air velocity	1000(m3/h)
	Resistance	<220pa
Pre-filter	Size(mm)	785x385x21
	Efficiency	75% @ 5um
	Resistance	<30 Pa
Electrical	Power supply	380v/50Hz





































































Controls:



- Shower operation controlled by solid sate LCD timer, with tamper-proof closure to ensure selected setting is maintained.
- Emergency "off" button with audible alarm installed inside shower. Built-in relays from motors, locks and timers.
Sequential operation initiated by sensor & door magnetic switch.





Electrical & Power Requirements:



- All electrical components UL Approved. 230V or 460V, 3 Ph.
- Junction box on top for customer power supply.
- Control circuitry 12V DC & 24V AC

Motor/Blower Assembly:



- High efficiency motors to reduce electrical load.

- Motors thermally protected & self-lubricating.
- Motors/Blowers are selected to maintain constant required airflow rate up to twice the initial static pressure.
Filter/Blower housing has simple plug-in connector.

Lighting -Recessed 2 pin fluorescent lighting. 60 ft. candles.



Factory test:



All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.

Factory test include:

--functional test and visual inspection

--electrical safety tests

--air velocity testing

--purification rank test (if need)



Consumable parts illustration:



1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.



2: HEPA filter: each one should be replacement in each half and one years.



Warranty:



Our equipment is warranty for 1 year excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.





Payment Term:



T/T in advance, 30% before place the order, 70% when you see copy BL

Or 30% T/T in advance before place the order, 70% LC at sight.
